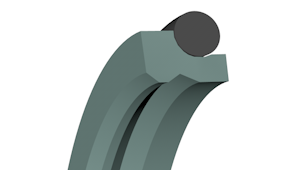

AL5 has a PTFE slip and an energizer to perform a high speed, efficiency and stable dust wiper. Speed range up to 4m/s.
Hydraulic Seals
DKBI seals
DKBI seal is press-in wiper seal, designed to be a press fit into an open groove with a metal cage double lips dust wiper made of TPU.
DKB seals
DKB seal is press-in wiper seal, designed to be a press fit into an open groove with a metal cage double lips dust wiper made of NBR.

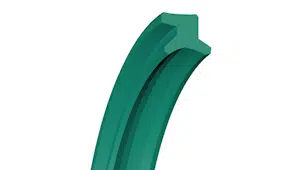

DHS seals
DHS seals are snap-in wiper seals. It is a double function rod wiper made by TPU. It is available in JIS and DIN standard. Speed range up to 1m/s.

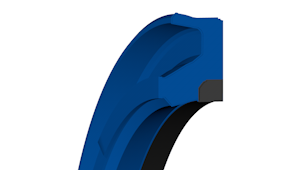

HBY seals
HBY seals have a TPU sealing ring that incorporates a PA or POM anti-extrusion ring. These profiles are suitable for extreme pressure peaks and demanding workloads in heavy duty applications up to 690 bar (10 000 psi).

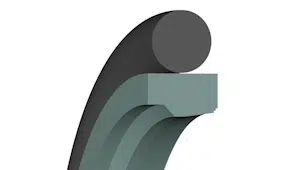

RS seals
RS rod seals consist of a PTFE slide ring and a NBR or FKM rubber energizer. Pressure range up to 400bar.They are available in metric sizes and some fit seal housings in accordance with ISO 7425-1:1988.
OK seals
OK seals have a step cut slide ring and a rectangular energizer.Pressure range up to 800bar(11600psi).They are available in metric sizes.

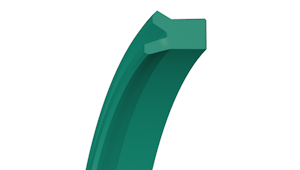

ODU seals
ODU seals are single-acting U seals made of TPU. Pressure range up to 320bar(4641psi). They are available in metric sizes.

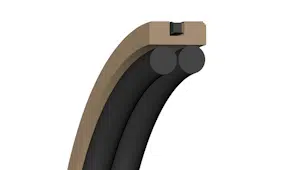

CQB seals
CQB seals have triple sealing faces separate different medium like fluid & fluid or fluid & gas.Pressure range up to 500bar(7250psi).

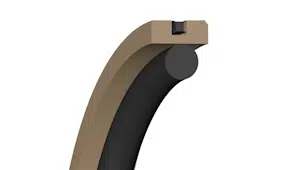

CQA seals
CQA seals have triple sealing faces separate different medium like fluid & fluid or fluid & gas.Pressure range up to 400bar(5800psi).They are available in metric sizes and some fit seal housings in accordance with ISO 7425-1:1988.
